DG/S2.64.5.1 Passerelle DALI2 Couleur 2 canaux

DG/S1.64.5.1 Passerelle DALI2 Couleur 1 canal

Passerelle Dali 8 Voies, Mrd

Passerelle KNX/Enocean

Security Plate: Add extra security behind the grille with a metal fascia plate (allows for IR passthrough)

HDBaseT Ultra Thin C-Class with DSC, 4K 60HZ 4:4:4 (4:2:2 HDR), Transmitter, Ethernet Pass-Thru, Including PSU (1080p: 150m* 4K:100m)

HDBaseT Ultra Thin C-Class with DSC, 4K 60HZ 4:4:4 (4:2:2 HDR), PoH Receiver, ARC, Ethernet Pass-Thru, Bi-Directional IR with Accessories (1080p: 150m* 4K:100m)

HDBaseT Ultra Thin C-Class, 4K 60HZ 4:2:0 HDR, Transmitter, Ethernet & RS232 Pass-Thru, Including PSU (1080p: 100m 4K:70m)

HDBaseT Ultra Thin C-Class, 4K 60HZ 4:2:0, HDR, PoH Receiver, Ethernet & RS232 Pass-Thru, Bi-Directional IR with Accessories (1080p: 100m 4K:70m)

HDBaseT Ultra Thin C-Class Extender with DSC, 4K 60HZ 4:4:4 (4:2:2 HDR), PoH Receiver, ARC, Ethernet Pass-Thru, Bi-Directional IR with Accessories (1080p: 150m 4K:100m)

HDBaseT Ultra Thin C-Class Extender, 4K 60HZ 4:2:0, HDR, PoH Receiver, Ethernet Pass-Thru, Bi-Directional IR with Accessories (1080p: 100m 4K:70m)

Send IP transmission over existing Coax cable up to 100 meters, passive no power required. You must use PMH-IP01H with this product @ FPS

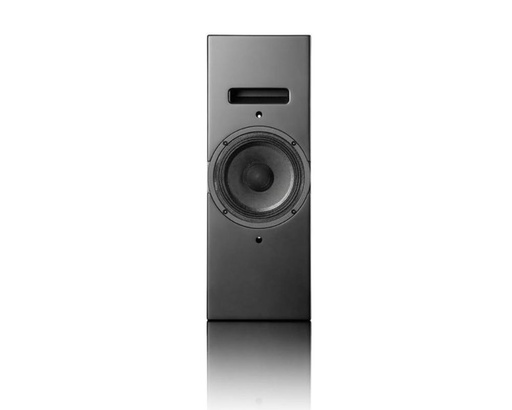

Speaker type: 6 ½” time-coherent point-source coaxial.
Principle: Vented/ Passive.
Woofer: 6 ½” woofer.
Tweeter: 1” soft dome.
Power Handling: 200W at 8Ohms.

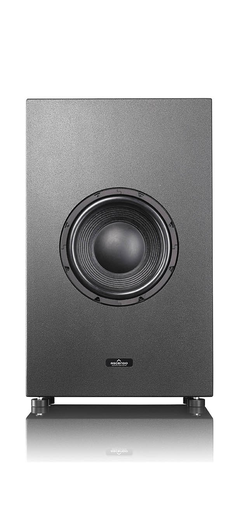

Speaker type Custom-built 12“ woofer
Principle Vented
SPL 118dB Cont. / 120dB Peak
Frequency range 25Hz to 200Hz (-3 dB)
Sensitivity 90dB / 1W
Power rating / Impedance 750W / 8 Ω
Width x Height x Depth 500 x 800 x 260mm
Weight 30kg

Speaker type: 6 ½” time-coherent point-source coaxial.
Principle: Vented/ Passive.
Woofer: 6 ½” woofer cone made from graphene-carbon non-woven mix.
Tweeter: 1” soft dome tweeter with presence EQ switch 0 dB / +3 dB.
Power Handling: 200W at 8Ohms.

Speaker type: 18” forward-firing, advanced carbon Rohacell® composite sandwich cones, neodymium motor with 4” ultra-high-temperature voice-coil
XMAX: 23 mm excursion each direction (46 mm linear), voice coil remaining in homogeneous magnetic field, linear and lowest distortion.
Principle: Sealed/ Passive.
Recommended amp: 1Ch DSP and 1Ch amplifier are required. Min. recommended amplifier: 89 Vrms, 126 Vpk, 22.5 A; equivalent to 2000 W @ 4 Ω, with correct RMS & peak limiter settings.

Speaker type: 5” time-coherent point-source coaxial.
Principle: Vented/ Passive.
Woofer: 5¼” woofer.
Tweeter: 1” soft dome.
Power Handling: 100W at 8Ohms.

Speaker type: 12” forward-firing, advanced carbon Nomex® pulp mix cones, neodymium motor with 4” ultra-high-temperature voice-coil and triple shorting rings.
XMAX: 20 mm excursion each direction (40 mm linear), voice coil remaining in homogeneous magnetic field, linear and lower distortion.
Principle: Sealed Passive.
Recommended Amp: 1Ch DSP and 1Ch amplifier are required. Min. recommended amplifier: 60 Vrms, 84 Vpk, 15.0 A; equivalent to 900 W @ 4 Ω with correct RMS & peak limiter settings

Speaker type: 15” forward-firing, with 3” voice-coil. XMAX: 6 mm excursion each direction (12 mm linear), voice coil remaining in homogeneous magnetic field, linear and lower distortion.
Principle: Vented/ Passive.
Recommanded amp: 1Ch DSP and 1Ch amplifier are required. Min. recommended amplifier: 52.9 Vrms, 74.8 Vpk, 13.2 A; equivalent to 700 W @ 4 Ω, with correct RMS & peak limiter settings. Out Power: 1000W

Speaker type: 80” forward-firing, dual gap motor structure with 2 inner and 2 outer voice coils, neodymium motor. . XMAX: . Principle: Sealed/ Passive. Recommended amp:
