It is designed to be run from a zone of Crestron, Control 4, AMX, Elan G etc. for high quality multi-room performance with the same discrete aesthetics as the SL Multi Soundbar. The SL C-2 is an evolution of this classic loudspeaker and is available in four standard versions, with the option to go bespoke. Operating Range: 70 Hz (-3 dB) to 40 KHz Sensitivity: 91/97 dB (Stereo/Mono) Max Power: 60/120 Watt (Stereo/Mono) Impedance: 8/4 ohms (Stereo/Mono) Dimensions: H: 100 W: 1672 D: 70/80 mm

The Artcoustic Sub Ci4-5 MKII features four 51⁄4-inch long-throw woofers, paired with Artcoustic’s in-house designed 1st order high-bandwidth sealed cabinet technology. Operating Range: 40 Hz (-3 dB) to 400 Hz Sensitivity: 90 dB Max Power: Handling 2 hours of 6 dB crest factor pink noise, 200 Watt RMS (AES Standard)
Impedance: 8 ohms nominal Dimensions: H: 145 W: 1000 D: 99 mm / H: 185 W: 1020 D: 111 mm (w. baffle)

Employing a single 10” long-throw woofer combined with the Artcoustic in-house designed 4th order bandpass technology, this subwoofer reproduces low frequency signals accurately and effortlessly, with high power handling and extremely low distortion. Operating Range: 35Hz to 120 Hz -3 dB 35Hz Sensitivity: 94 dB Max Power: 160 Watt
Impedance: 7 ohms Dimensions: H: 350 W: 350 D: 200 mm

Employing a 10” long-throw woofer combined with our in-house 4th order bandpass technology, this subwoofer reproduces low frequency signals accurately and effortlessly, with high power handling and extremely low distortion. Operating Range: 35Hz to 120Hz -3dB 35Hz Sensitivity: 94 dB Max Power: 160 Watt Impedance: 7 ohms Dimensions: H: 440 W: 440 D: 163 mm

The SL HSPL soundbar is a high sound pressure level version of the Multi soundbar. The SL version is an evolution of this classic loudspeaker and is available in four standard versions, with the option to go bespoke. This model is customisable and the price is to be specified on the quote. Operating Range: 70 Hz (-3dB) to 40 kHz
Sensitivity: Mono 102 / Stereo 94 dB Max Power: Mono 360 Watt RMS / Stereo 60 Watt RMS (AES Standard) Impedance: Mono 4 ohms / Stereo 13 ohms nominal
Dimensions (mm): H 100 • W BESPOKE • D 70/80

Employing one 10-inch long-throw-woofer, combined with the Artcoustic in-house designed 4th. order bandpass technology, making this sub capable of reproducing low frequency signals accurately and effortlessly, with high power handling and extremely low distortion. Operating Range: 30 Hz (-3 dB) to 120 Hz Sensitivity: 96 dB Max Power: 160 Watt Impedance: 7 ohms Dimensions: H: 450 W: 450 D: 233 mm

For the ultimate in low-frequency performance, the Artcoustic Sub 2 subwoofer delivers awesome bass reproduction. For its size, it is one of the most dynamic, powerful and controlled subwoofers on the market, making it ideal for professional applications. Operating Range: 27 Hz (-3 dB) to 120 Hz Sensitivity: 96 dB Max Power: 160 Watt
Impedance: 7 ohms Dimensions: H: 500 W: 500 D: 233 mm

For its size, it is one of the most dynamic, powerful and controlled subwoofers on the market, making it ideal for professional applications. Operating Range: 20 Hz (-3 dB) to 120 Hz Sensitivity: 96 dB Max Power: 320 Watt Impedance: 14 omhs Dimensions: H: 600 W: 600 D: 258 mm

The Artcoustic Subwoofer Series effectively allow for more flexibility in positioning your subwoofers.With this range, you have the advantage of a smaller design, which hereby can be positioned in more suitable places in the room. Operating Range: 15 Hz (-3 dB) to 120 Hz Sensitivity: 99 dB Max Power: 640 Watt Impedance: 8 ohms Dimensions: H: 1000 W: 600 D: 258 mm

The CPH-10 P is a single 10 inch, long-throw mid­-woofer design, enabling a bass response that extends well down to 40Hz. Indeed, the low frequency performance is the equivalent of speakers twice its size. Operating Range: 35 Hz (-3 dB) to 40 kHz
Sensitivity: 93 dB Max Power: 150 Watt Impedance: 7 ohms Dimensions: H: 400 W: 300 D: 141/153 mm

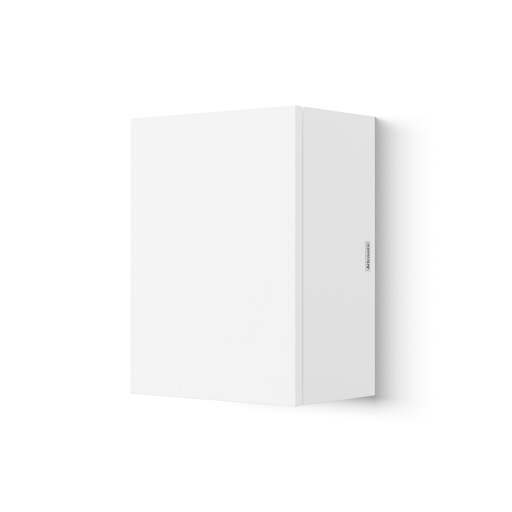

The CPH-5 is one of Artcoustic’s most versatile models. It’s slimline profile and powerful articulated performance make it the ideal choice for high-end Hi-Fi and multi-room audio installations, without the need for a subwoofer. Operating Range: 40 Hz (-3 dB) to 40 kHz Sensitivity: 90 dB Max Power: 100 Watt Impedance: 8 ohms Dimensions (mm): H 310 • W 230 • D 141/156

The CPH-200S subwoofer delivers amazing bass, ideal for home cinemas, 2.1 channel multi-room, Hi-Fi applications and fixed installations in general. Employing one 10” woofer, capable of reproducing low frequency signals accurately and effortlessly. Operating Range: 30 Hz to 120 Hz Max Power: 200 Watt Dimensions (mm): H 400 • W 400 • D 290

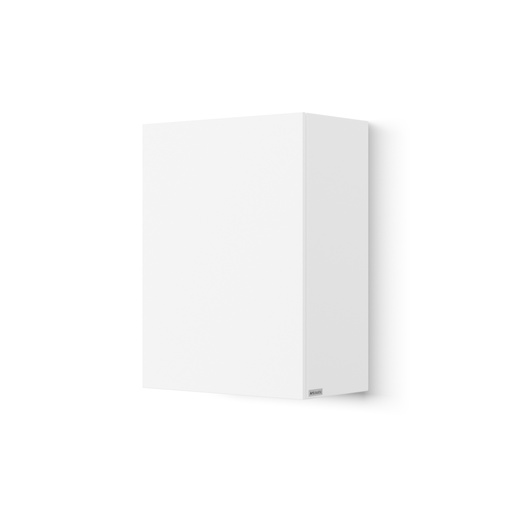

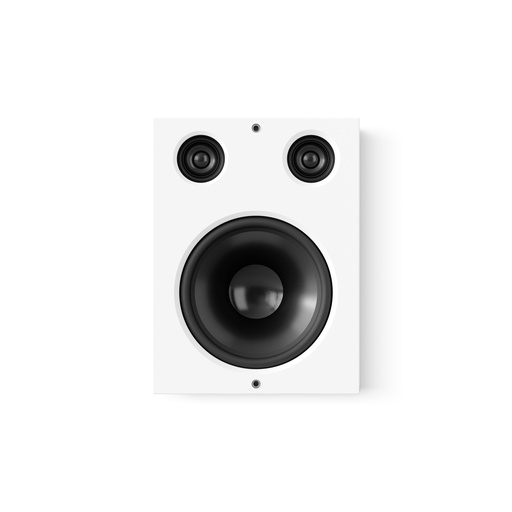

The active CPH-10 A Stereo combines the latest Bluetooth technologies, electronic EQ and filters, with raw power and exceptional sound pressure levels. Operating Range: 40 Hz (-3dB) to 20 kHz Max Power: 100 Watt Dimensions: H: 400 W: 300 D: 158/170 mm

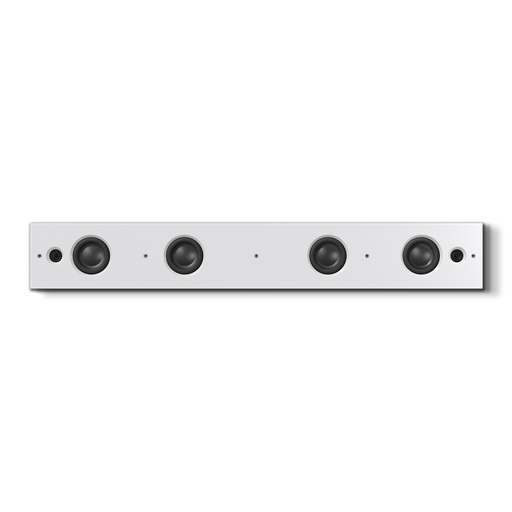

The CPH-Soundbar from Artcoustic is a sleek, high-performance audio solution designed to integrate seamlessly with any modern TV. Standard finishes are available in Black and White, with bespoke colour-matching offered upon request to perfectly complement your space. Operating Range: 30Hz (-3dB) to 40kHz Sensitivity: 94 dB Max Power: 200 Watt
Impedance: 4 ohms Soundbar Cabinet Dimensions: H: 170 W: 1429 D: 91 mm Baffle/Screen Dimensions: H: 210 W: 1449/1672/1904/bespoke D: 12/10 mm

The A4 is a high SPL reinforcement speaker for cinema arrays. Use it with the Spitfire A6 to build larger arrays. Operating Range: 70 Hz (-6dB) to 20 kHz Sensitivity: 94 dB
Max Power: 120 Watt Impedance: 8 ohms Dimensions: H: 210 W: 280 D: 99 mm

The A6 is a true high SPL all-rounder and can be used as a single sound reinforcement speaker, or mounted as multiples with adjustable angles. Operating Range 70 Hz (-6dB) to 20 kHz Sensitivity: 98 dB Max Power: 180 Watt Impedance: 11 ohms Dimensions: H: 280 W: 280 D: 92 m

The Spitfire A4 and the Spitfire A6 combined into a Spitfire 10-5 Array configuration. The speakers are joined with the specially-made Spitfire Array Bracket to achieve the exact angle needed for optimal sound performance. Operating Range: 70 Hz (-6dB) to 20 kHz
Sensitivity: 100 dB Max Power: 300 Watt Impedance: 5 ohms Dimensions: H 513 • W 280 • D min. 250/max. 350 mm

Two Spitfire A6s combined into a Spitfire 12-6 Array configuration. The speakers are joined with the specially-made Spitfire Array Bracket to achieve the exact angle needed for optimal sound performance. Operating Range: 70 Hz (-6dB) to 20 kHz Sensitivity: 103 dB Max Power: 360 Watt Impedance: 6 ohms Dimensions (mm): H 584 • W 280 • D min. 250/max. 350

The Spitfire A6 and two Spitfire A4s combined into a Spitfire 14-7 Array configuration. The speakers are joined with the specially-made Spitfire Array Bracket to achieve the exact angle needed for optimal sound performance. Operating Range: 70 Hz (-6dB) to 20 kHz Sensitivity: 104 dB Max Power: 420 Watt Impedance: 4 ohms Dimensions (mm): H 720 • W 280 • D min. 250/max. 350

This is the grille for the SL Evolve 1-1 Screen model.
