Speaker type: 15” forward-firing, with 3” voice-coil. XMAX: 6 mm excursion each direction (12 mm linear), voice coil remaining in homogeneous magnetic field, linear and lower distortion.
Principle: Vented/ Passive.
Recommanded amp: 1Ch DSP and 1Ch amplifier are required. Min. recommended amplifier: 52.9 Vrms, 74.8 Vpk, 13.2 A; equivalent to 700 W @ 4 Ω, with correct RMS & peak limiter settings. Out Power: 1000W

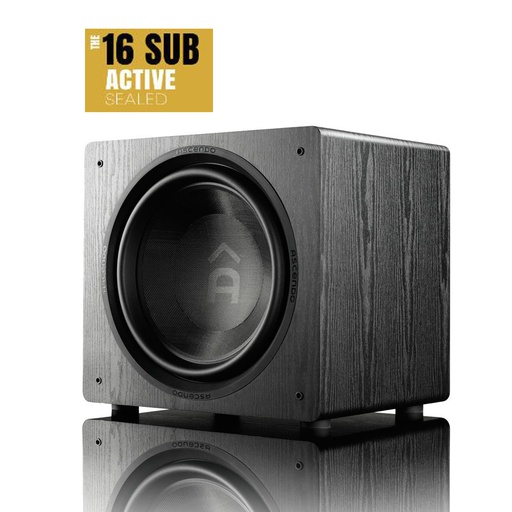

Speaker type: 16” forward-firing compositive cone woofer, 3” voice coil. XMAX: 20 mm excursion each direction (40 mm linear), voice coil remaining in homogeneous magnetic field, linear and lower distortion. Principle: Sealed/ Active Built in DSP amp. Out Power: 1000W

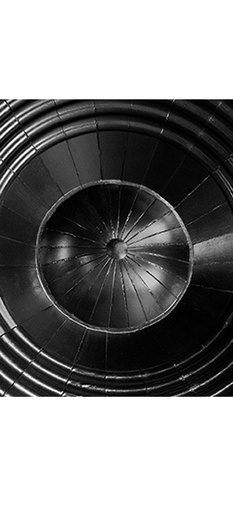

Speaker type: 80” forward-firing, dual gap motor structure with 2 inner and 2 outer voice coils, neodymium motor. . XMAX: . Principle: Sealed/ Passive. Recommended amp:

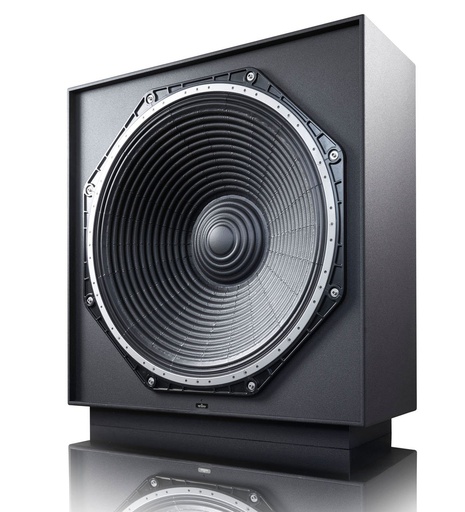

Speaker type: 50” forward-firing, dual gap motor structure with 2 inner and 2 outer voice coils, neodymium motor. . XMAX: . Principle: Sealed/ Passive. Recommended amp:

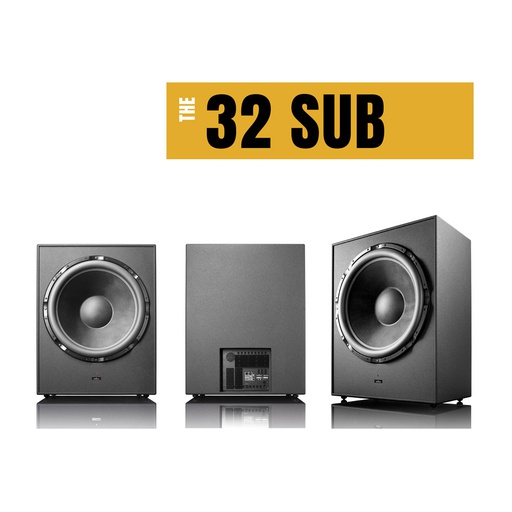

Speaker type: 32” forward-firing, dual gap motor structure with 2 inner and 2 outer voice coils, neodymium motor. . XMAX: . Principle: Sealed/ Passive. Recommended amp:

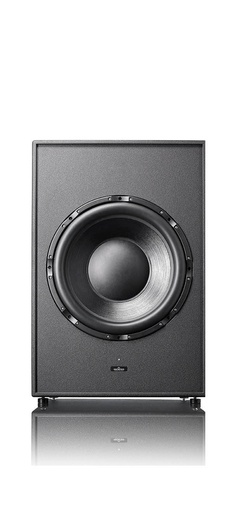

Speaker type: 24” forward-firing, dual gap motor structure with 2 inner and 2 outer voice coils, neodymium motor. . XMAX: . Principle: Sealed/ Passive. Recommended amp:

Speaker type: 21” forward-firing, dual gap motor structure with 2 inner and 2 outer voice coils, neodymium motor. XMAX: 17.5 mm excursion each direction (35 mm linear), voice coil remaining in homogeneous magnetic field, linear and lower distortion. Principle: Sealed/ Passive. Recommended amp: 1Ch DSP and 1CH amplifier are required. Min. recommended amplifier: 109 Vrms, 154 Vpk, 27.3 A; equivalent to 3000 W @ 4 Ω with correct RMS & peak limiter settings.

Speaker type: 32” forward-firing, dual gap motor structure with 2 inner and 2 outer voice coils, neodymium motor. . XMAX: . Principle: Sealed/ Active. Out Power:

Speaker type: 24” forward-firing, dual gap motor structure with 2 inner and 2 outer voice coils, neodymium motor. . XMAX: . Principle: Sealed/ Active Built in DSP amp. Out Power:

Speaker type: 21” forward-firing, dual gap motor structure with 2 inner and 2 outer voice coiles, neodymium motor. XMAX: 17.5 mm excursion each direction (35 mm linear), voice coil remaining in homogeneous magnetic field, linear and lower distortion. Principle: Sealed/ Active Buitl in DSP amp. Out Power: 3000W

Speaker type: 21” forward-firing, dual gap motor structure with 2 inner and 2 outer voice coiles, neodymium moto. XMAX: 17.5 mm excursion each direction (35 mm linear), voice coil remaining in homogeneous magnetic field, linear and lower distortion. Principle: Vented/ active Built in DSP amp. Out Power: 3000W

Speaker type: 18” forward-firing, dual gap motor structure - 2 inner and 2 outer voice coils, neodymium motor. XMAX: 17.5 mm excursion each direction (35 mm linear), voice coil remaining in homogeneous magnetic field, linear and lower distortion.
Principle: Sealed/ Active Built in DSP amp.
Out Power: 3000W

Speaker type: 18” forward-firing, dual gap motor structure - 2 inner and 2 outer voice coils, neodymium motor. XMAX: 17.5 mm excursion each direction (35 mm linear), voice coil remaining in homogeneous magnetic field, linear and lower distortion.
Principle: Vented/ Active Built in DSP Amp.
Out Power: 3000W

Speaker type: 18” forward-firing, dual gap motor structure - 2 inner and 2 outer voice coils, neodymium motor. XMAX: 17.5 mm excursion each direction (35 mm linear), voice coil remaining in homogeneous magnetic field, linear and lower distortion.
Principle: Sealed/ Passive.
Recommended amp: 1Ch DSP and 1Ch amplifier are required. Min. recommended amplifier: 72 Vrms, 102 Vpk, 18.0 A; equivalent to 1100 W @ 4 Ω, with correct RMS & peak limiter settings.

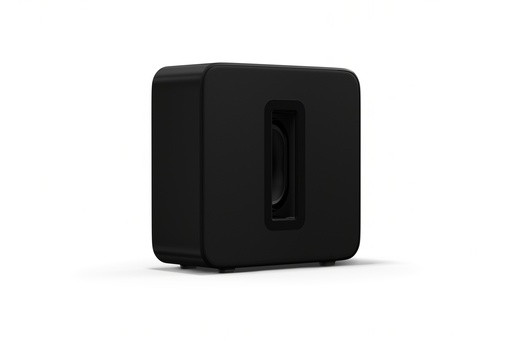

Subwoofer Sonos de 4ème génération. Modèle connecté.

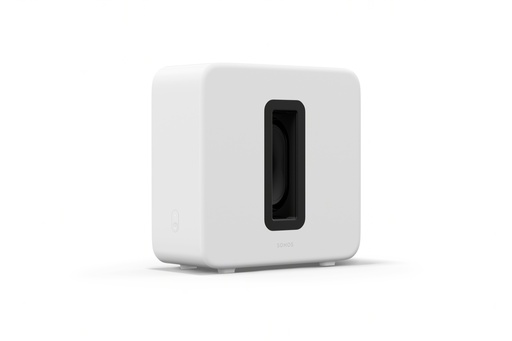

Subwoofer Sonos de 4ème génération. Modèle connecté

The Artcoustic Sub Ci4-5 MKII features four 51⁄4-inch long-throw woofers, paired with Artcoustic’s in-house designed 1st order high-bandwidth sealed cabinet technology. Operating Range: 40 Hz (-3 dB) to 400 Hz Sensitivity: 90 dB Max Power: Handling 2 hours of 6 dB crest factor pink noise, 200 Watt RMS (AES Standard)
Impedance: 8 ohms nominal Dimensions: H: 145 W: 1000 D: 99 mm / H: 185 W: 1020 D: 111 mm (w. baffle)

Employing a single 10” long-throw woofer combined with the Artcoustic in-house designed 4th order bandpass technology, this subwoofer reproduces low frequency signals accurately and effortlessly, with high power handling and extremely low distortion. Operating Range: 35Hz to 120 Hz -3 dB 35Hz Sensitivity: 94 dB Max Power: 160 Watt
Impedance: 7 ohms Dimensions: H: 350 W: 350 D: 200 mm

Employing a 10” long-throw woofer combined with our in-house 4th order bandpass technology, this subwoofer reproduces low frequency signals accurately and effortlessly, with high power handling and extremely low distortion. Operating Range: 35Hz to 120Hz -3dB 35Hz Sensitivity: 94 dB Max Power: 160 Watt Impedance: 7 ohms Dimensions: H: 440 W: 440 D: 163 mm

Employing one 10-inch long-throw-woofer, combined with the Artcoustic in-house designed 4th. order bandpass technology, making this sub capable of reproducing low frequency signals accurately and effortlessly, with high power handling and extremely low distortion. Operating Range: 30 Hz (-3 dB) to 120 Hz Sensitivity: 96 dB Max Power: 160 Watt Impedance: 7 ohms Dimensions: H: 450 W: 450 D: 233 mm
