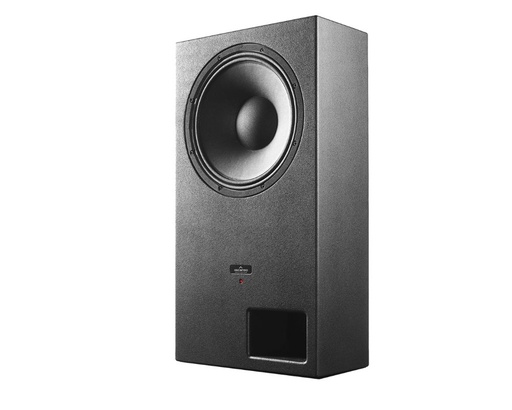

15” time-coherent point-source coaxial. 3” voice coil diameter, compression driver. Low-mid 85 Vrms, 120 Vpk, 10.6 A; high 44 Vrms, 62 Vpk, 5.5 A; equivalent to LF 900 W @8 Ω, HF 240 W @ 8 Ω, with correct RMS & peak limiter settings

18” forward-firing, with 4” voice-coil. 1Ch DSP and 1Ch amplifier are required.

18” forward-firing, dual gap motor structure - 2 inner and 2 outer voice coils, neodymium motor. 1Ch DSP and 1Ch amplifier are required. Min. recommended amplifier: 72 Vrms, 102 Vpk, 18.0 A; equivalent to 1100 W @ 4 Ω

21” forward-firing, dual gap motor structure with 2 inner and 2 outer voice coils, neodymium motor. 1Ch DSP and 1Ch amplifier are required with this subwoofer

21” forward-firing sub, dual gap motor structure with 2 inner and 2 outer voice coils, neodymium motor. 1Ch DSP and 1Ch amplifier are required.

2 x 5000 W

Output; 4 x balanced XLR
Input 2 x balanced XLR
1 x AES3 with SRC (32-192 kHz)
4 x Dante / AES67

ASCENDO DSP ULN2-2604 Ultra-Low-Noise Amplifier. 1 x 2000W (Low) + 1 x 600W (High), 1 x DSP Output, High Dynamic Range DAC (130dB (A)) for High, (120dB (A) for Low,

3way LED Screen Wall Speaker, Available: first quarter of 2026

3Ch DSP + 3Ch Amplifier are required
